Place of Origin: | Anhui,China |
পরিচিতিমুলক নাম: | Litong Global |
সাক্ষ্যদান: | ISO9001-2008 |
Model Number: | LT-161125 |
Minimum Order Quantity: | Negotiable |
---|---|
মূল্য: | Negotiable |
Packaging Details: | Standard export packing in coil or on drum |
Supply Ability: | 400tons/day |
উপাদান: | উচ্চ কার্বন ওয়্যার রড | পৃষ্ঠতল চিকিৎসা: | গরম-dipped galvanized |
---|---|---|---|
প্রসার্য শক্তি: | 1000-1750MPA | দস্তা-লেপ ওজন: | 100-400g / মি 2 |
packing: | কুণ্ডলী বা ড্রামে | প্রত্যয়ন পত্র: | ISO9001-2008 |
লক্ষণীয় করা: | high strength steel cable,strand cable wire |

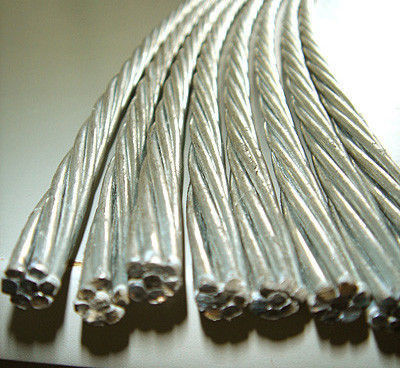

7/16" Zinc-coated(Galvanized) Steel Wire Strand for guy wire,overhead transmission line
Application:The galvanized steel wire strand is used for overhead ground lines or electrical power transmission lines. Stay or guy wire strands are produced for use with poles, towers, or any other form of guying
Standard
concentrically stranded Galvanized steel wire strand available in class "A", "B" and "C" galvanizing, "A" being the least heavy and "C" being the most heavy. Manufactured without welds per ASTM A-363 or with welds per ASTM A-475. Strands are formed to remain substantially in place when severed.
Galvanized Steel Wire Strand as per ASTM A 475
Norminal Diamater of Strand | No. of Wires | Diamater of Wire | Tolerance of Wire | Weight | Zinc-coating | Breaking Loading |
mm | - | mm | mm | Kg/Km | g/m2 | KN |
3.18 | 7 | 1.04 | ±0.05 | 48 | 122 | 8.14 |
3.97 | 7 | 1.32 | ±0.05 | 76 | 122 | 13.078 |
4.76 | 7 | 1.57 | ±0.08 | 109 | 153 | 17.748 |
5.56 | 7 | 1.83 | ±0.08 | 146 | 153 | 24.02 |
6.35 | 7 | 2.03 | ±0.08 | 180 | 183 | 29.581 |
7.14 | 7 | 2.36 | ±0.10 | 244 | 214 | 39.812 |
7.94 | 7 | 2.64 | ±0.10 | 305 | 244 | 49.82 |
9.52 | 7 | 3.05 | ±0.10 | 407 | 259 | 68.503 |
11.11 | 7 | 3.68 | ±0.13 | 595 | 275 | 92.523 |
12.7 | 7 | 4.19 | ±0.13 | 770 | 275 | 119.657 |
Package

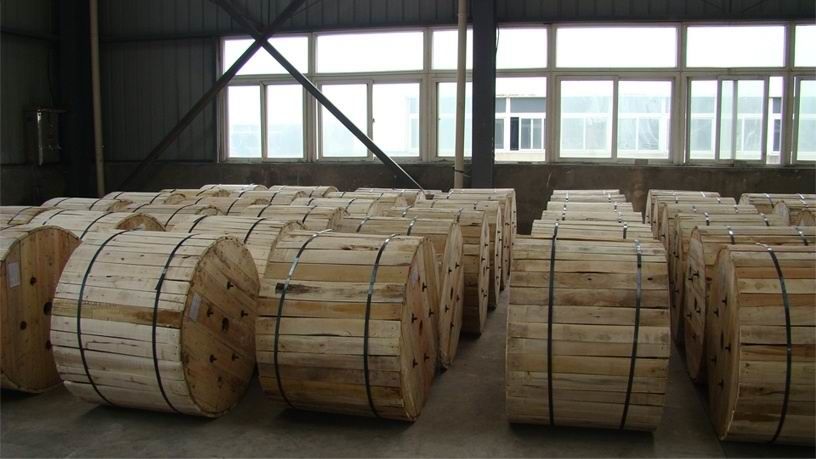

Package in Export Wooden or Steel Wooden or Steel Drums
Welcome to enquiry our Galvanized Steel Wire Strand
Attn:Ms Nancy
E-mail:nancylsl at hotmail.com
What'app:0086-13855514957
ব্যক্তি যোগাযোগ: nancy
